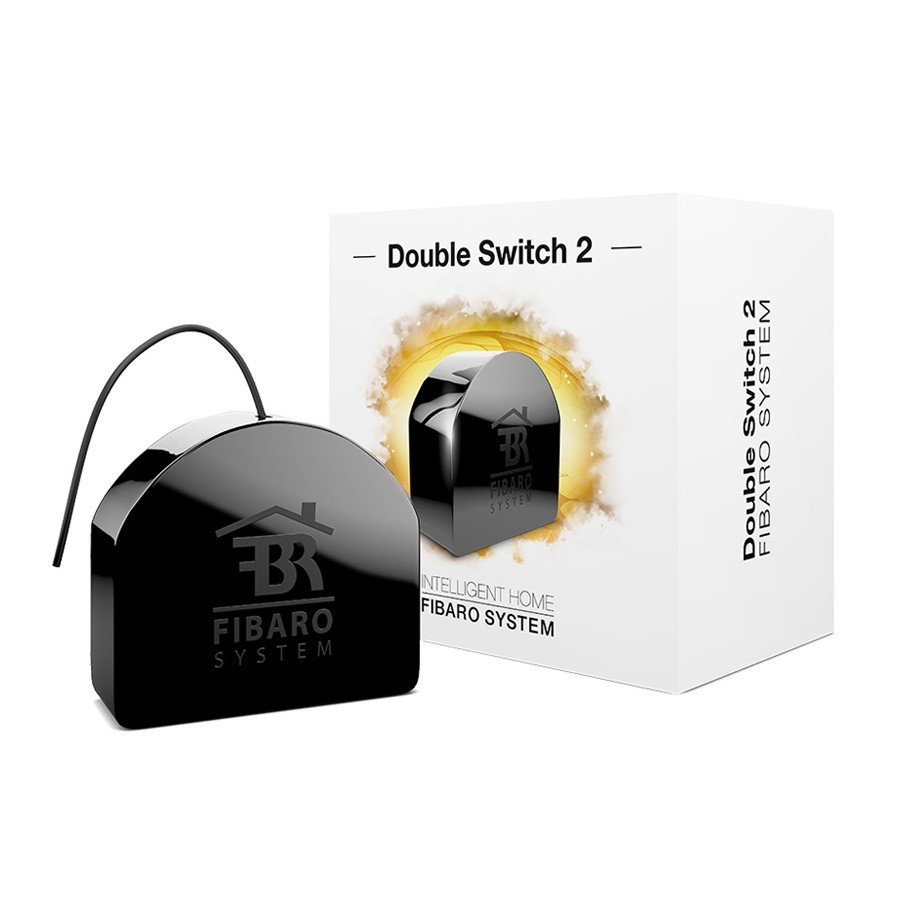

Fibaro Z-Wave Double Switch 2 FGS-223 ZW5
The Fibaro Z-Wave Double Switch 2 discreetly wires in your wall space or behind an existing light switch or power point - Maintaining manual switch control and adding brilliant Z-Wave (Plus) on/off home automation control to two independent lights or appliances at 6.5A per channel and 10A total load.
Double Switch 2 module to control two loads up to 1.5KW (6.5A) each.
•Enables Z-Wave control of two independent lights or appliances
•6.5A per channel and 10A total load.
•Very small size enables modules to fit into standard switch boxes (45mm recommended)
•Z-Wave Plus Certified
•3-wire system
•Frequency for AU/NZ 921.4Mhz
This device requires a qualified New Zealand electrician to install into the electrical wiring.
Double Switch 2 module to control two loads up to 1.5KW (6.5A) each.
•Enables Z-Wave control of two independent lights or appliances
•6.5A per channel and 10A total load.
•Very small size enables modules to fit into standard switch boxes (45mm recommended)
•Z-Wave Plus Certified
•3-wire system
•Frequency for AU/NZ 921.4Mhz
This device requires a qualified New Zealand electrician to install into the electrical wiring.
Price:
NZ$ 139.00
Out Of Stock
Specifications
Technical Details
- Radio protocol: Z-Wave+
- Radio signal power: up to 1mW
- Voltage: 110 - 240V AC
- Maximum load (per channel): 6.5A (Resistive)
- Maximum total load: 10A (Resistive)
- Power Consumption: < 0.8W
- Overcurrent protection: required external 10A circuit breaker
- Range: up to 50m (outdoors) and 40m (indoors)
- Dimensions (LxWxH): 43 x 38 x 20 mm
- Operational temperature: 0-35°C
- Scene management: 1 to 3 presses and holding the key pressed down can be mapped to four different actions
- System of control for each channel: Standard control, Delayed device activation, Delayed device deactivation, Auto on and auto off mode with additional options
