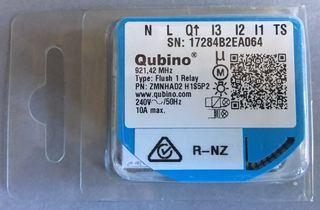

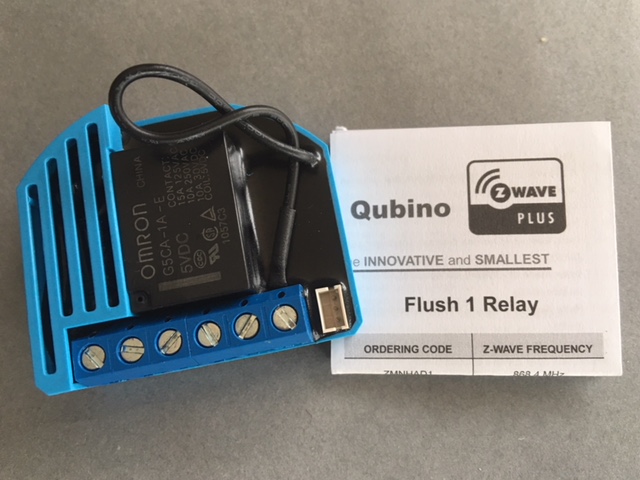

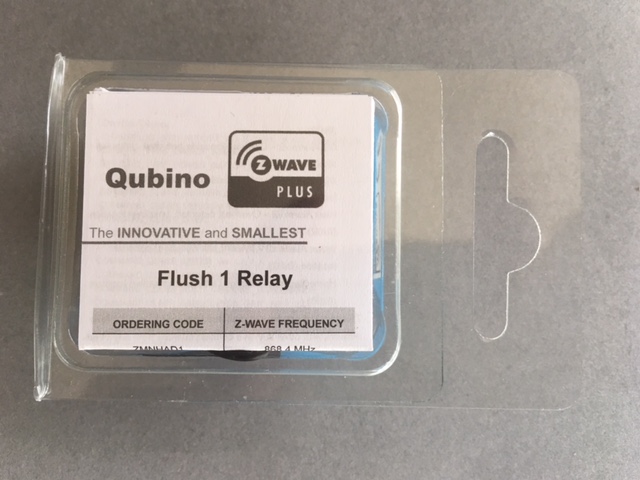

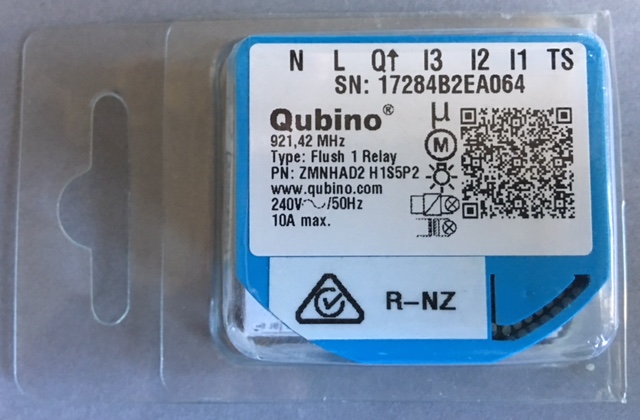

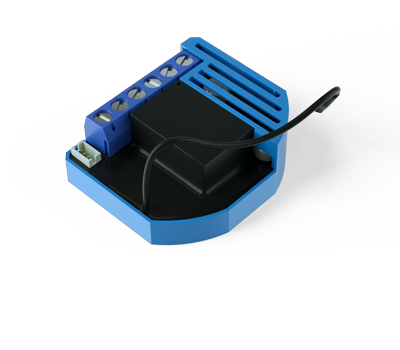

Qubino Flush 1 Relay ZMNHAD2 Aus/NZ Frequency 921.42MHz
The Qubino Flush 1 Relay is ideal as an electrical device switch for lights, fans, ovens, washing machines, irons, power sockets, garage doors, electric radiators, water heaters, etc. You can control it either remotely through the Z-Wave network or through wall switches. It also measures power consumption and supports the connection of a digital temperature sensor.
The Qubino Flush 1 Relay is ideal for remotely controlling and switching electrical devices (e.g. lights or fans).
The Qubino Flush 1 Relay can measure the power consumption of the connected electrical device and itself has an extremely low power consumption of just 0.4 W.
The Qubino Flush 1 Relay can operate across a wide temperature range, from a chilly -10˚C to a scorching 40˚C (14˚–104˚F). It supports the connection of a digital temperature sensor, which is also useful for creating complex scenes. Every device also acts as a repeater in order to improve the range and stability of the Z-Wave Network.
The simplest installation.
Extremely small size and a specially designed casing mean that connecting the device inside a flush mounting box is simplicity itself. The installation process, tested and approved by professional electricians, consists of just three simple steps:
1, Remove the switches from the box and disconnect the wires.
2, Connect the wires to the Qubino device and insert it in the box.
3, Fix the switches to the box.
Qubino devices are "install-and-forget" products. Our products are made to last, so we only select and use top-quality electronic components. Our devices are also the most tested Z-Wave microcontrollers on the market. The Slovenian Institute of Quality and Metrology (SIQ), an independent testing body, tests safety parameters including temperature rise, construction, insulation resistance, power consumption and overload in accordance with the EN 60669-2-1 standard.
Warning:
Danger of electrocution !
All works on the device may be performed only by a qualified and licensed electrician. Observe national regulations.
Even when the device is turned off, voltage may be present at its terminals. Any works introducing changes into the configuration of connections or the load must be always performed with disconnected voltage (disable the fuse).
For more informations, please follow the links below.
The Qubino Flush 1 Relay is ideal for remotely controlling and switching electrical devices (e.g. lights or fans).
The Qubino Flush 1 Relay can measure the power consumption of the connected electrical device and itself has an extremely low power consumption of just 0.4 W.
The Qubino Flush 1 Relay can operate across a wide temperature range, from a chilly -10˚C to a scorching 40˚C (14˚–104˚F). It supports the connection of a digital temperature sensor, which is also useful for creating complex scenes. Every device also acts as a repeater in order to improve the range and stability of the Z-Wave Network.
The simplest installation.
Extremely small size and a specially designed casing mean that connecting the device inside a flush mounting box is simplicity itself. The installation process, tested and approved by professional electricians, consists of just three simple steps:
1, Remove the switches from the box and disconnect the wires.
2, Connect the wires to the Qubino device and insert it in the box.
3, Fix the switches to the box.
Qubino devices are "install-and-forget" products. Our products are made to last, so we only select and use top-quality electronic components. Our devices are also the most tested Z-Wave microcontrollers on the market. The Slovenian Institute of Quality and Metrology (SIQ), an independent testing body, tests safety parameters including temperature rise, construction, insulation resistance, power consumption and overload in accordance with the EN 60669-2-1 standard.
Warning:
Danger of electrocution !
All works on the device may be performed only by a qualified and licensed electrician. Observe national regulations.
Even when the device is turned off, voltage may be present at its terminals. Any works introducing changes into the configuration of connections or the load must be always performed with disconnected voltage (disable the fuse).
For more informations, please follow the links below.
RRP:
NZ$ 129.00
Price:
NZ$ 116.10
Out Of Stock
Specifications
| Power supply | 110 - 230 VAC ±10% 50/60Hz, (24-30 VDC) |
| Rated load current of AC output (resistive load)* | 1 X 10A / 230 VAC |
| Rated load current of DC output (resistive load) | 1 X 10A / 30 VDC |
| Output circuit power of AC output (resistive load) | 2300 W (230 VAC) |
| Output circuit power of DC output (resistive load) | 240 W (24 VDC) |
| Power measurement accuracy | P = 5–50 W, +/-3 W P > 50 W, +/-3% |
| Digital temperature sensor range (sensor must be ordered separately) |
-50° ~ +125°C |
| Operation temperature | -10° ~ +40°C |
| Distance | up to 30 m indoors |
| Dimensions (WxHxD) | 41.8 x 36.8 x 15.4 mm |
| (packaging) | (79x52x22 mm) |
| Weight (including packaging) | 28 g (34 g) |
| Electricity consumption | 0.4 W |
| For installation in boxes | Ø ≥ 60 mm or 2M, depth ≥ 60 mm |
| Switching | Relay |
* In the case of loads other than resistive, pay attention to the value of cosφ and if necessary use a load lower than the rated load. Max current for cosφ = 0.4 is 3 A at 250 VAC, 3 A at 24 VDC L/R = 7 ms.
Video
https://www.youtube.com/watch?v=U1LLKDQuQ48&feature=youtu.be
