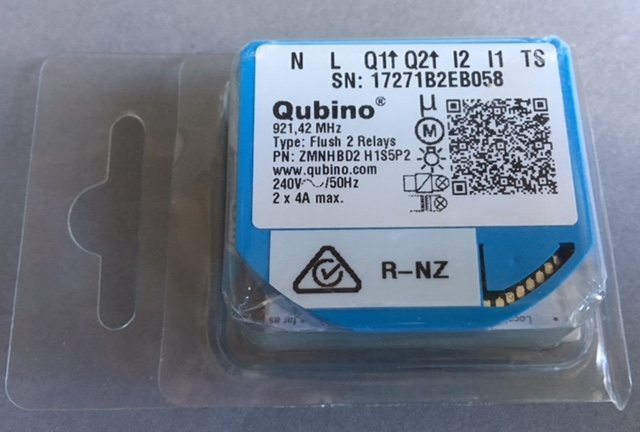

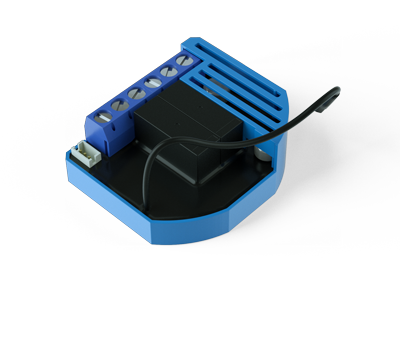

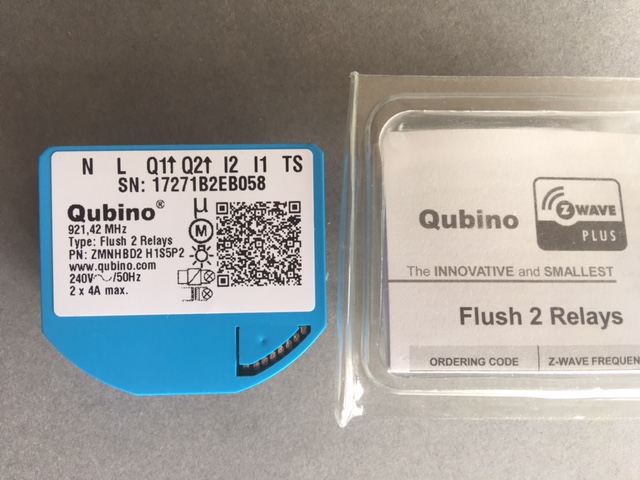

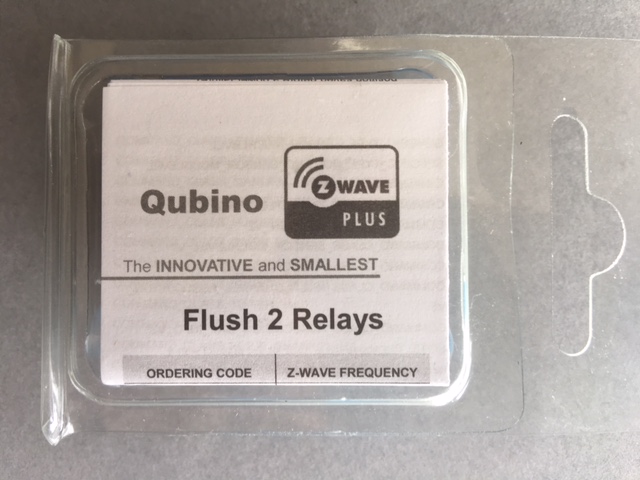

Qubino Flush 2 Relays ZMNHBD2 Aus/NZ Frequency 921.42MNz
The Qubino Flush 2 Relay is ideal for switching on or off two electrical devices. You can control it either remotely through the Z-Wave network or through wall switches. It also measures the power consumption of two electrical devices and supports the connection of a digital temperature sensor.
The Qubino Flush 2 Relay is ideal for remotely controlling up to two electric devices (door locks, door openers, fans, etc.) or lights.
The Qubino Flush 2 Relay can measure the power consumption of both connected electrical devices separately and itself has an extremely low power consumption of less than 0.4 W.
The Qubino Flush 2 Relay can operate across a wide temperature range, from a chilly -10˚C to a scorching 40˚C (14˚–104˚F). It supports the connection of a digital temperature sensor, which means you can create complex scenes and switch any device relative to a set temperature range. Every device also act as a repeater in order to improve the range and stability of the Z-Wave network.
Extremely small size and a specially designed casing mean that connecting the device inside a flush mounting box is simplicity itself. The installation process, tested and approved by professional electricians, consists of just three simple steps:
1, Remove the switches from the box and disconnect the wires.
2, Connect the wires to the Qubino device and insert it in the box.
3, Fix the switches to the box.
Qubino devices are "install-and-forget" products. Our products are made to last, so we only select and use top-quality electronic components. Our devices are also the most tested Z-Wave microcontrollers on the market. The Slovenian Institute of Quality and Metrology (SIQ), an independent testing body, tests safety parameters including temperature rise, construction, insulation resistance, power consumption and overload in accordance with the EN 60669-2-1 standard.
Warning:
Danger of electrocution !
All works on the device may be performed only by a qualified and licensed electrician. Observe national regulations.
Even when the device is turned off, voltage may be present at its terminals. Any works introducing changes into the configuration of connections or the load must be always performed with disconnected voltage (disable the fuse).
For more informations, please follow the links below.
The Qubino Flush 2 Relay is ideal for remotely controlling up to two electric devices (door locks, door openers, fans, etc.) or lights.
The Qubino Flush 2 Relay can measure the power consumption of both connected electrical devices separately and itself has an extremely low power consumption of less than 0.4 W.
The Qubino Flush 2 Relay can operate across a wide temperature range, from a chilly -10˚C to a scorching 40˚C (14˚–104˚F). It supports the connection of a digital temperature sensor, which means you can create complex scenes and switch any device relative to a set temperature range. Every device also act as a repeater in order to improve the range and stability of the Z-Wave network.
Extremely small size and a specially designed casing mean that connecting the device inside a flush mounting box is simplicity itself. The installation process, tested and approved by professional electricians, consists of just three simple steps:
1, Remove the switches from the box and disconnect the wires.
2, Connect the wires to the Qubino device and insert it in the box.
3, Fix the switches to the box.
Qubino devices are "install-and-forget" products. Our products are made to last, so we only select and use top-quality electronic components. Our devices are also the most tested Z-Wave microcontrollers on the market. The Slovenian Institute of Quality and Metrology (SIQ), an independent testing body, tests safety parameters including temperature rise, construction, insulation resistance, power consumption and overload in accordance with the EN 60669-2-1 standard.
Warning:
Danger of electrocution !
All works on the device may be performed only by a qualified and licensed electrician. Observe national regulations.
Even when the device is turned off, voltage may be present at its terminals. Any works introducing changes into the configuration of connections or the load must be always performed with disconnected voltage (disable the fuse).
For more informations, please follow the links below.
RRP:
NZ$ 129.00
Price:
NZ$ 116.10
Out Of Stock
Specifications
| Power supply | 110 - 230 VAC ±10% 50 / 60 Hz, (24–30 VDC) |
| Rated load current of AC output (resistive load)* | 2 X 4 A / 230 VAC |
| Rated load current of DC output (resistive load) | 2 X 4 A / 30 VDC |
| Output circuit power of AC output (resistive load) | 2 X 920 W (230 VAC) |
| Output circuit power of DC output (resistive load) | 2 X 96 W (24 VDC) |
| Power measurement accuracy | P = 0-200 W, +/- 2 W P > 200 W, +/-3% |
| Digital temperature sensor range (sensor must be ordered separately) |
-50° ~ +125°C |
| Operation temperature | -10° ~ +40°C |
| Distance | up to 30 m indoors (depending on building materials) |
| Dimensions (WxHxD) | 41.8 x 36.8 x 16.9 mm |
| (packaging) | (79 x 52 x 22) |
| Weight (including packaging) | 28 g (34 g) |
| Electricity consumption | 0.4 W |
| For installation in boxes | Ø ≥ 60 mm or 2 M, depth ≥ 60 mm |
| Switching | Relay (2x) |
* In the case of loads other than resistive, pay attention to the value of cosφ and if necessary use a load lower than the rated load. Max current for cosφ = 0.4 is 2 A at 250 VAC, 3 A at 24 VDC.
Video
https://www.youtube.com/watch?v=p5kHYz3q2_g&feature=youtu.be
