iSW35F/SW-10Nm/17RPM WiFi Tubular Motor for Smart Blinds, Amazon Alexa and Google Assistant Compatible directly

iSW35F/SW-10Nm/17RPM WiFi Tubular Motor for Smart Blinds, Amazon Alexa and Google Assistant Compatible directly

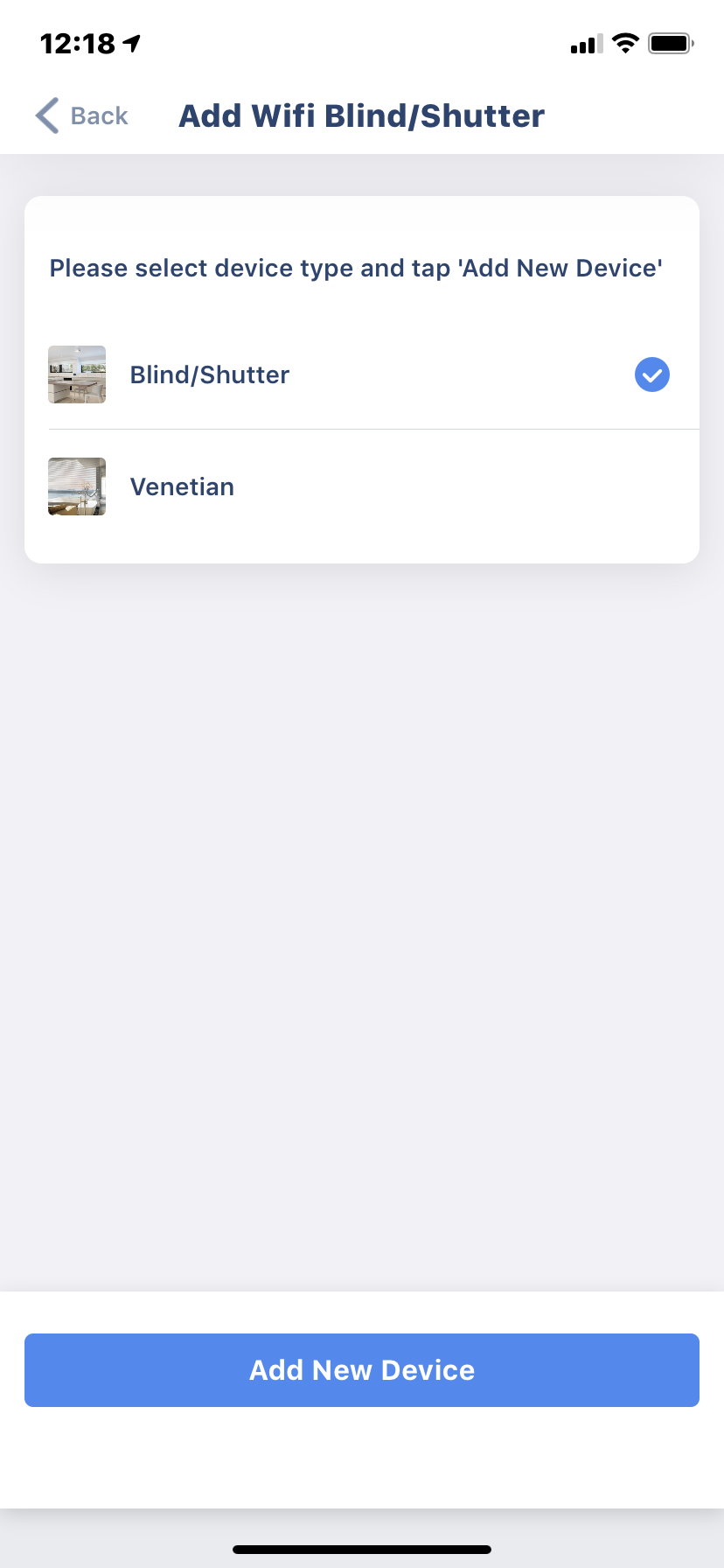

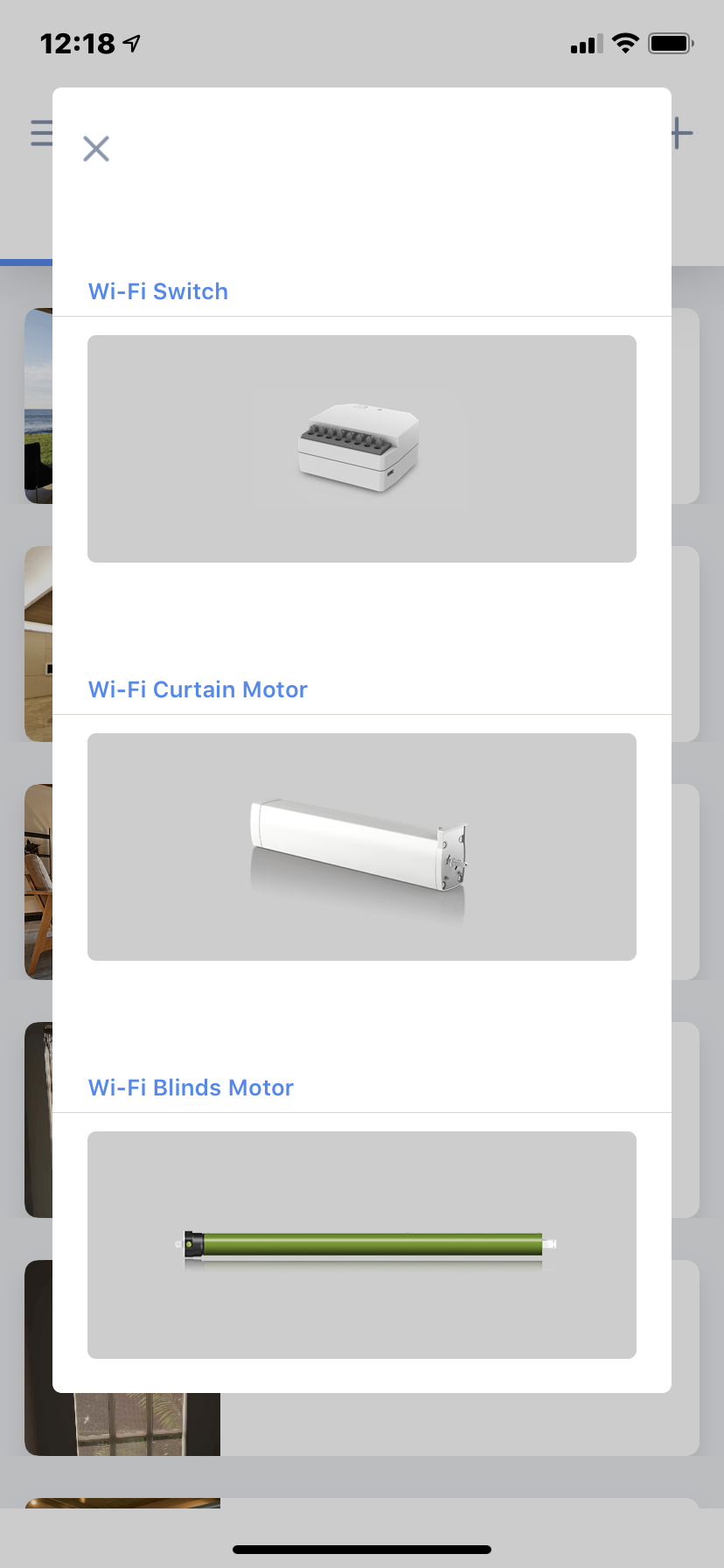

iSW35F/SW-10Nm/17RPM is our new arrived AC mains powered tubular motor for Smart Blinds, it can be used for motorised roller blinds, motorised Venetian blinds and motorised Roman blinds. It's a wifi motor, you can use the Connector App to control the motorised roller blind directly without the wifi bridge hub, it is fully compatible with Amazon Alexa and Google Home.

The rated torque is 10Nm, so it's very powerful, it not only can drive very larger and drop roller blinds, but also can be used for very heavy and larger 50mm slat motorised venetian blinds.

When it is used for motorised roller blind, like iSW35S tubular motor, since its motor limit head is wider than normal iSW25 and iSW28 type tubular motors, it will cause the gap for this side of roller blind is a couple of mm larger than normal iSW25 and iSW28 type of tubular motor, so please be aware about that, we would recommend you to use iSW35F/SW wifi motor for the roller blinds in living area or those outside mounted ( Face mounted ) roller blinds including recessed mounted motorised roller blinds, we would not recommend it to be used for motorised roller blind in bedroom particularly when the window frame is very slim, since in this case, the more light will come through the gap.

This tubular motor also is Bi-Directional motor, you still can use our any bi-directional remote to control it as well, whatever you use the bi-directional remote or not, it can feedback the motor status, you can know the real blind position through your app and you can do percentage control as well.

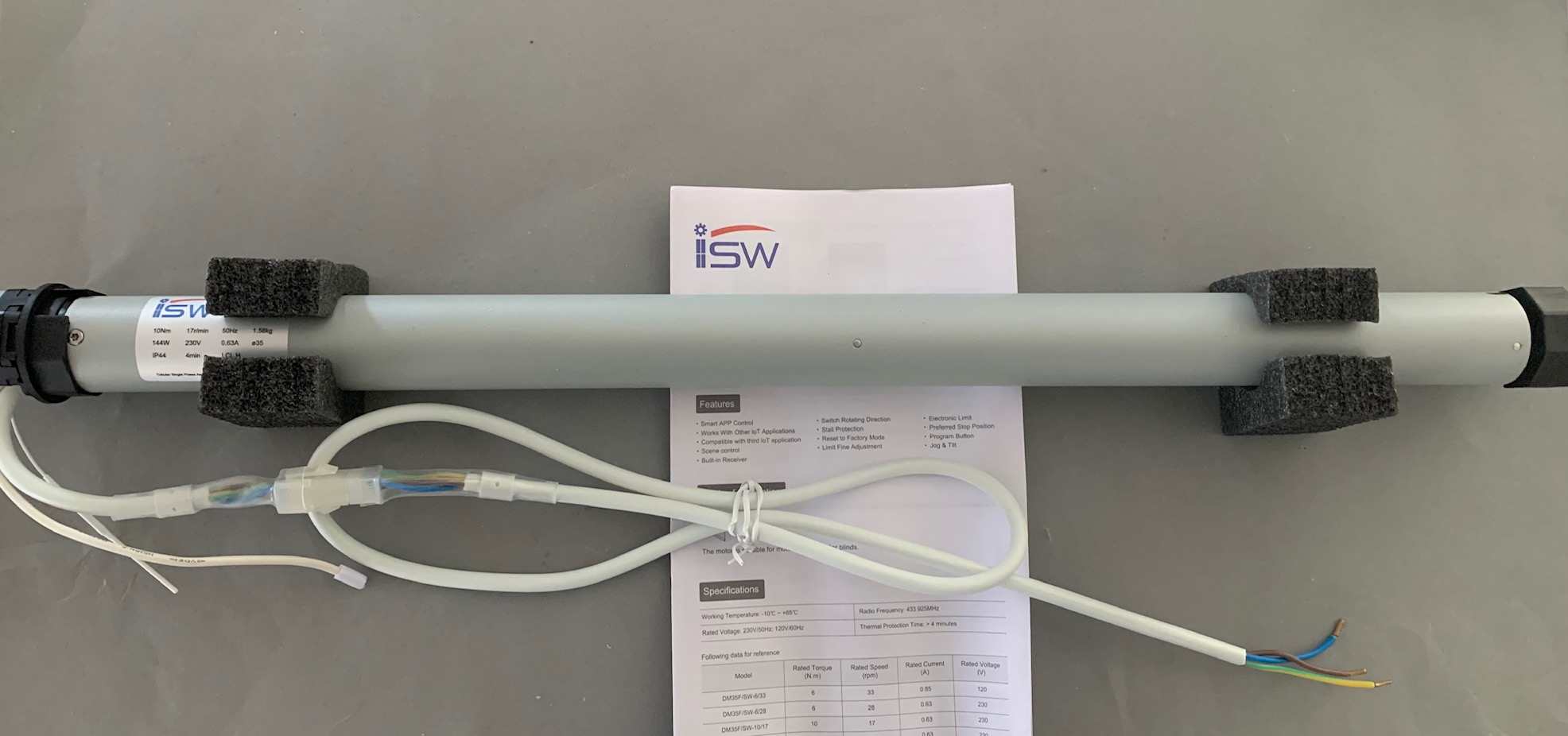

As you know, iSW35F/SW is mains powered motor, it's better you can pre wire the power cable, the good new is this motor comes with Molex power cable connector, you can pay some deposit to take the female Molex connector with approx. 1m length power cables to let the electrician to pre wire it into the corner of your window frame , so it will be very convenient when you install the motorised roller blinds, you can just simply plug in the Molex connector.

Different with iSW35S tubular motor, this motor has the electronic limit feature, it's much easier to set the up and down limit position.

We can use this wifi tubular motor to custom made the motorised roller blinds or retrofit your existing roller blinds to motorised ones in some cases ( condition apply ). Please do not hesitate to contact us via email.

Features :

•Smart App Control,
•Works with other loT Applications,
•Compatible with third party loT Applications,
•Scene Control,
•Built-in Receiver,
•Switch Rotating Direction,
•Stall Protection,
•Program/Reset button,
•Limit Fine Adjustment,
•Electronic Limit,
•Preferred Stop Position,
•Jog & Tilt
RRP:
NZ$ 309.00
Limited Stock:
Only 49 remaining at this price
Price:
NZ$ 278.10
pcs
Purchase Qty:


STANDARD THREE YEAR MANUFACTURER WARRANTY: The manufacturer warrants this product to be free from defects in workmanship and materials, under normal residential use and conditions, for the period of three (3) year for the original invoice date. Shipping and handling fees are to be paid for by the customer.

Rated Torque : 10 Nm

Rated Speed : 17 rpm

Motor tube Diameter : 35mm

Power input : 230V  50 Hz

Rated Power: 144 W

Rated Current: 0.63A

Degree of Protection : IP44

Maximum Number of Turns : 4 min

Minimum width of the roller blinds: 650mm
