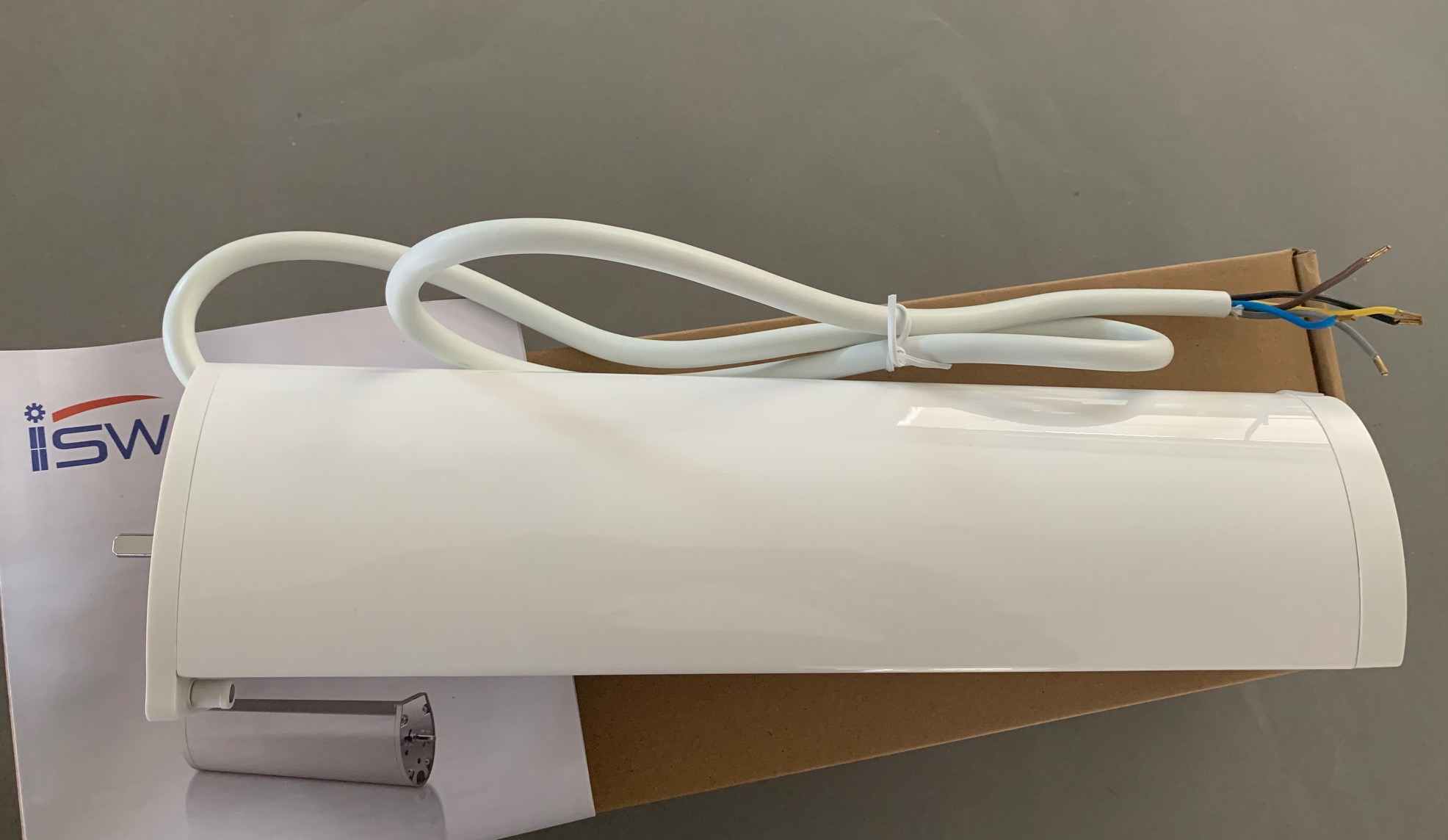

iSW72EV/S-75/20 5 wires 100Kg Load-bearing capacity curtain motor ( Home Automation compatible )

iSW72EV/S-75/20 5 wires 100Kg Load-bearing capacity curtain motor ( Home Automation compatible )
iSW72EV/S-75/20 is a 5 wires 100Kg Load-bearing capacity curtain motor, it's the same as iSW72EN-75/20 , both of them have 100 Kg load-bearing capacity, meanwhile it has the same features like iSW72TV 5 wire curtain motor, it is compatible with home automation system such as Z-Wave and C Bus Control system etc. The difference with other two model is iSW72EV/S is Bi-Directional curtain motor, it can feedback the motor status, so you will know the curtain position via App.

•Electronic limit, limit memorized after power off.
•Touch-start (allowing you to manually pull the curtain and the motor takes over)
•Resistance stop (stops the motor if it senses an obstruction). This is a safety feature but also is used to automatically stop the motor when it reaches the end of it's travel
•Manual operation - when there is no mains power you can still pull the curtains manually
•Built in radio control - 433MHz receiver built in, it's Bi-Directional motor, you can only control it by bi-directional remote.
•Built in Transformer - you can connect this into AC 240V supplies via permanent connection unit.
•Really quiet operation, the noise level less than 29 dB.
•Support the RS485 protocol control.

Please note : this model of curtain motor is only suitable for 72 Type of motorised curtain track.
RRP:
NZ$ 319.00
Limited Stock:
Only 20 remaining at this price
Price:
NZ$ 287.10
Purchase Qty:


STANDARD THREE YEAR MANUFACTURER WARRANTY: The manufacturer warrants this product to be free from defects in workmanship and materials, under normal residential use and conditions, for the period of three (3) year for the original invoice date. Shipping and handling fees are to be paid for by the customer.

Rated Torque : 1.2N.m

Open/close speed : 20 cm/s

Rated power : 75W

Input power : AC 230V 50 Hz

Emission Frequency :  433.925 MHz

Degrees of protection : IP40

Maximal running time : 4 min
