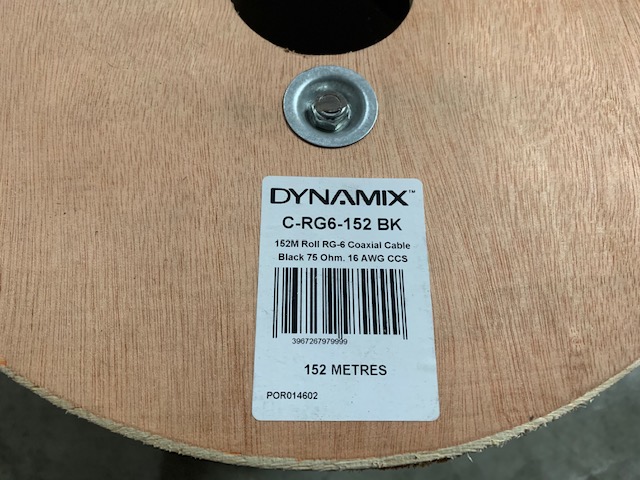

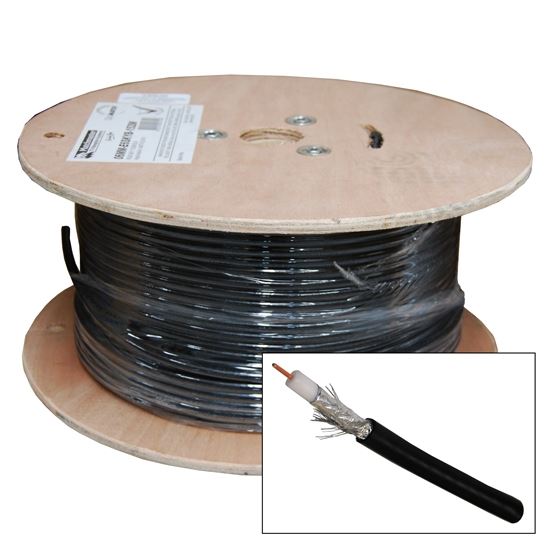

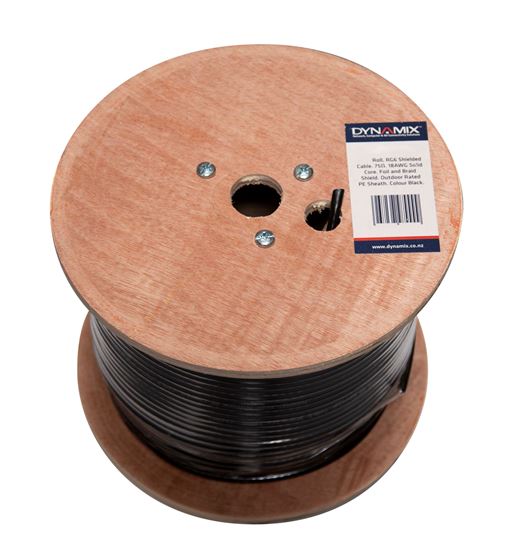

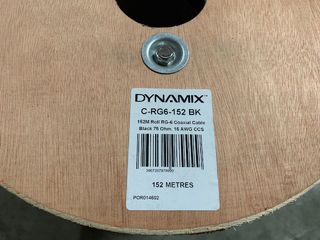

Dynamix C-RG6-152 BK 152m Shielded Cable Roll Black

Dynamix C-RG6-152 BK 152m Shielded Cable Roll Black
DYNAMIX 152m Roll RG6 Shielded Cable. Black. 75 ohm. 16 AWG solid core. Foil and braid shield.

Application:

For CATV/MATV, Broadband, HDTV and
Satellite Broadcasting Transmission use.
RRP:
NZ$ 89.99
Limited Stock:
Only 1 remaining at this price
Price:
NZ$ 71.99
Shipping:
NZ$ 6.00
Purchase Qty:
1

CONSTRUCTION
Conductor
Material Copper Covered Steel
Size 16AWG
Construction Solid (1/1.02mm)
Insulation
Material Foam PE
Nominal O.D 4.57mm
Shielding
Material Bond Al. Foil, 100% Coverage
Braiding
Material Aluminium Wire Braiding,
40% Coverage
Sheath
Material PVC
Nominal O.D 6.7mm
Color Black
PHYSICAL PROPERTIES
Conductor
Min. Bend Radius 67mm
Operating Temperature -15°C to 70°C
ELECTRICAL PROPERTIES
Nom. Conductor DC Resistance @20°C 100Ω/km
Min. Insulation Resistance 1000MΩ.km
Voltage test: Core to Shielding 1000V a.c/1min
Nom. Characteristic Impedance 75±3Ω
Nom. Capacitance 53±2pF/m
