Z-Wave Plus group control kit ( Fibaro Brand )

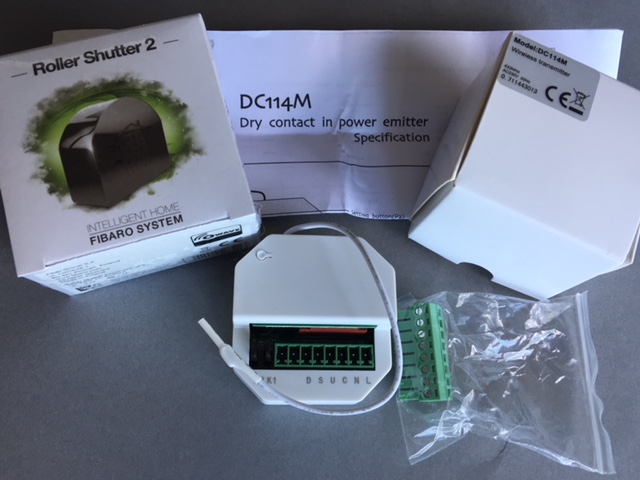

Z-Wave group control Kit contains one DC114M AC power wireless RF 433.2MHz emitter ; one Fibaro Roller Shutter 2 AC power Z-Wave Module.

Ease of use and installation by qualified electrician only .

This Z-Wave control Kit is designed to remotely control those Built-in 433.2 MHz RF receiver tubular motor ( 25TE, 25 LE and 25CE model ) or Curtain motor ( DT82TN and 82TV Model ) through Z-Wave Home Automation technology. The Z-Wave protocol is an interoperable, wireless, RF-based communications technology designed specifically for control, monitoring and status reading applications in residential and light commercial environments. Mature, proven and broadly deployed (with over 50 million products sold worldwide), Z-Wave is by far the world market leader in wireless control, bringing affordable, reliable and easy-to-use 'smart' products to many millions of people in every aspect of daily life.

Both of Fibaro RS 2 module and DC114M need to connect to AC mains power, it's not necessary to be installed beside the motorised roller blind, it can be installed anywhere just within the range of the RF signal.

For setting and connection for them, you need to set the switch control mode setting of DC114M to Double Bond Interlock Switch Control Mode, meanwhile you need to set the switch type of Fibaro RS 2 module to toggle switches type too, and you should connect the output of Q1 and Q2 from the Fibaro RS 2 Module to the input of the " Up "and "Down" from the DC114M and connect the "Com" port to live line of the AC power cable.

You can control any built-in RF receiver motorised curtains and motorised roller blinds though this kit via z-wave controller, to Open ( Up ), Close ( Down ) and Stop without the problem, but you can not do percentage of control them and it will not show you the exact moving position right now due to the motor is not be controlled by the z-wave module directly.
